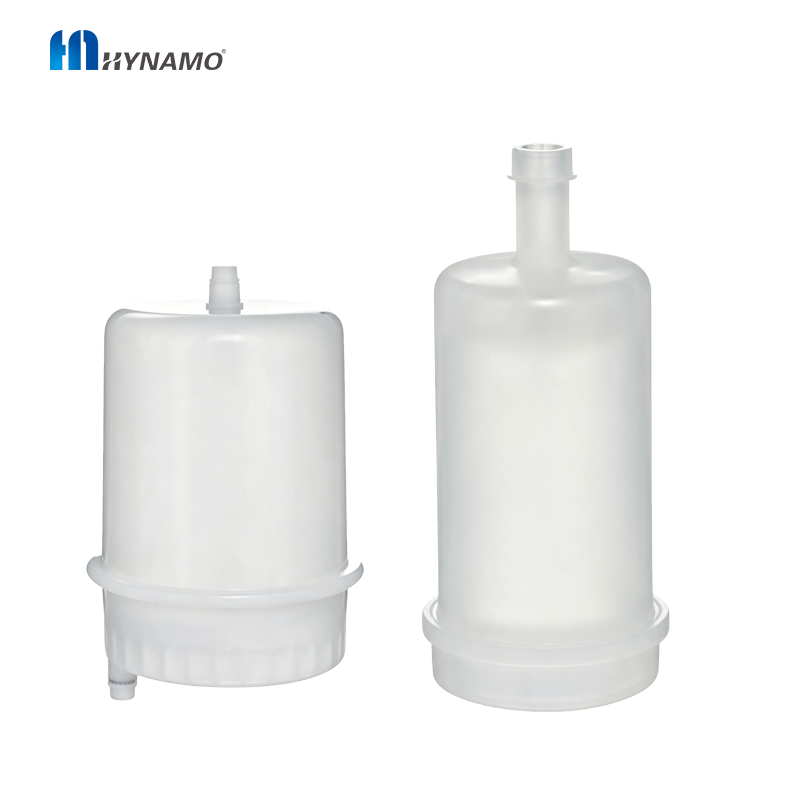

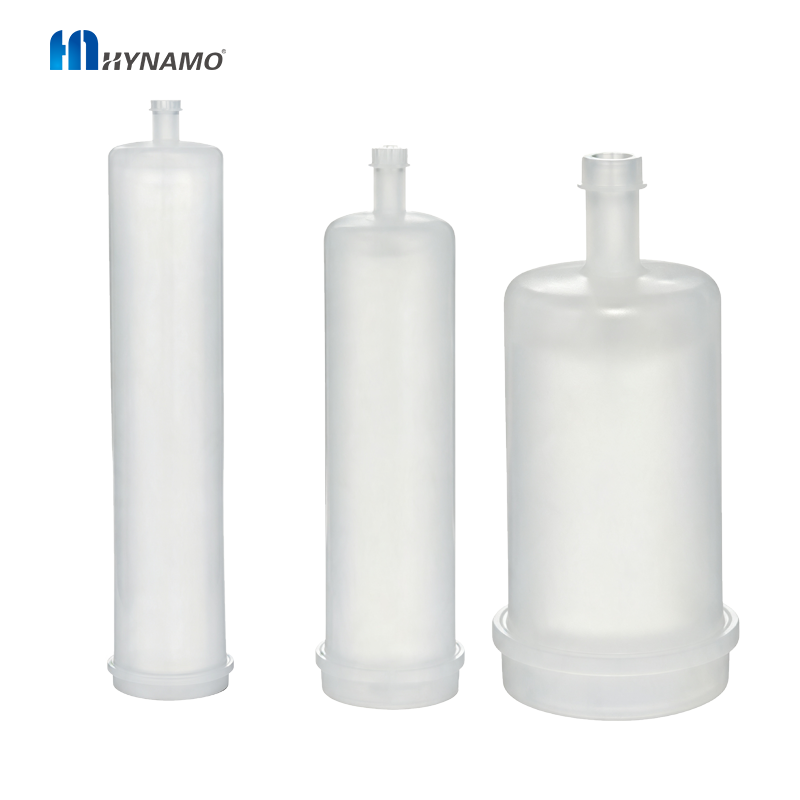

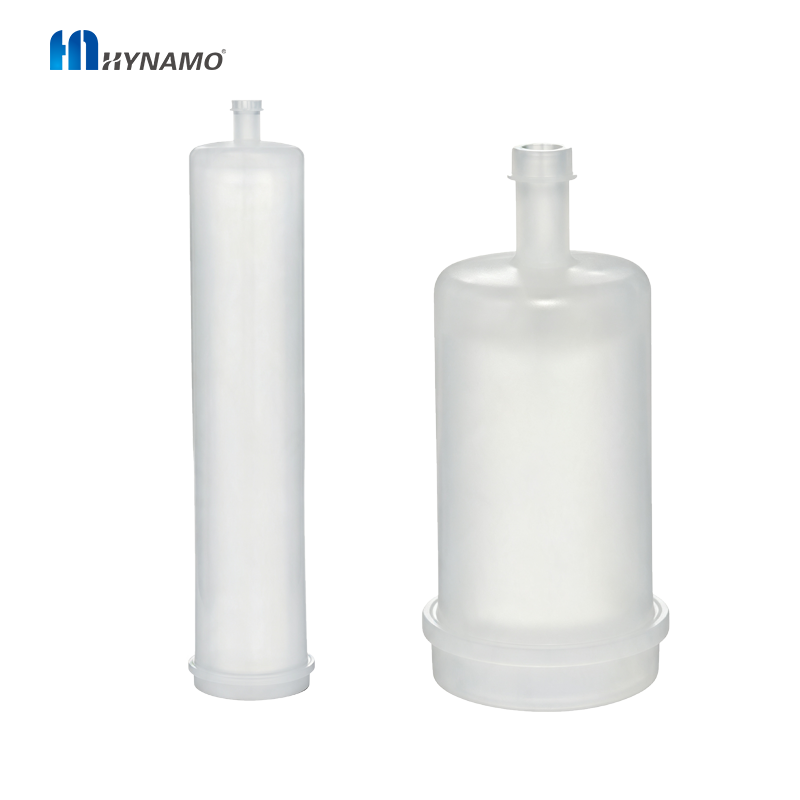

Capsule filter BH Series For slurry filtration

Featuring a unique structural design, the BH Series Capsule Filters have an inner core that fits tightly with the PP housing with an extremely narrow clearance, effectively minimizing liquid loss. As the liquid is fully enclosed in the encapsulated filter cartridge, cleaning of the housing is eliminated, resulting in reduced processing costs. Additionally, the exclusive check valve design offers splash-proof performance, effectively preventing operators from exposure to hazardous materials and fully ensuring a safe and eco-friendly filtration process.

B70D Series Backwashable Pleated Filter Cartridge

Adopting high-purity polypropylene (PP) filter material with the following advantages:

Excellent chemical stability, resistant to acids, alkalis and most organic solvents (such as trace corrosive ions in power plant condensate water).

Extremely low impurity content, avoiding secondary pollution and meeting the high-purity water quality requirements of power plants.

Integral thermal fusion welding process: no adhesive bonding, eliminating the risk of fiber shedding ande nsuring firm combination between filter material and support frame.

Inner and outer double support structure:

Capsule filter BH Series For slurry filtration
The inner frame provides support to prevent the cartridge from collapsing under high pressure difference; the outer frame fixes the filter material to enhance impact resistance.

The structural design supports backwashing. Reversing water flow flushes contaminants off the filter surface to realize reusable performance and reduce replacement costs.

Product Features

The filter cartridge replacement is simple and can be completed through easy steps;
It is especially suitable for filtration scenarios of high-viscosity liquids;
It keeps the production environment clean and effectively reduces environmental pollution;
The gap between the capsule and the filter housing is extremely small, which minimizes slurry residue;
Since the liquid is completely sealed inside the filter cartridge, there is no need to clean the st ainless steel filter housing, greatly simplifying the maintenance process.

Specifications

Product Type	BH05	BH10	BH20
Inner Cartridge Length	5"	10"	20"
Number of Installed Cartridges	1
Housing Length	192±2mm	318±2mm	192±2mm
Outer Diameter	76+2mm
Inner Cartridge Structure	Wound, Pleated
Seal Ring	EPDM
Vent Valve Thread Size	R1/4
Max. Operating Temperature	60℃
Filter Membrane Material	Polypropylene (PP)

7-Cartridge capsule filter BAH Series

The 7-cartridge capsule filter features an integrated capsule design. Based on the gradient- wound structure of polypropylene filter media, the filter area is effectively enlarged by increasing the number of winding layers, resulting in a longer service life. The greater filter thickness also provides higher dirt-holding capacity for the BAH series filter cartridges, enabling more stable retention performance during filtration. Through structural optimization and process upgrading, this design integrates expanded filter area, increased dirt-holding capacity and stable filtration precision, delivering technical advantages of both high efficiency and durability.

Product Features

Made of all-polypropylene material with excellent chemical compatibility. Features drainable design for efficient slurry recovery.
Constructed with hot-melt welding technology, free of adhesives and no metal particle precipitation.
Suitable for production lines with few product changes, effectively improving productivity.

Specifications

Housing Material	Polypropylene (PP)
Filter Membrane Material	Polypropylene (PP)
Number of Installed Cartridges	7 cartridges
Inner Cartridge Length	10", 20°
Outer Diameter	76±2mm
Inner Cartridge Structure	Wound
Seal Ring	EPDM
Vent Valve Thread Size	R1/4
Max. Operating Temperature	60℃
Check Valve Material	Seal: PP,Spring: SUS304
