High flow cartridge filter housing
- Higher design strength standard,through0.6MPA,100,000 fatigue strength verification.
- More convenient to install and maintenance, multiple choice of drain and discharge pressure interface.
- Price is more competitive, especially for large sea water desalination and waste water reuse projects.
- Superior anti-corrosion performance, flow passage components are all made by UPVC/CPVC.
- 20", 40", 60" large flux folding fiter element is suitable for this housing.
- The end cover adopts the form of quick coupling, easy to remove and replace the filter element.
- The inlet & outlet and the shell are integrated. Compared with the FRP filter, which inlet and outlet are made of plastic connector, and the mechanical seal is used for the connection of the shel, there will be a risk of leakage.
- Overview
- Features
- By Structure
- Category
- High flow cartridge filter housing
- High flow Skid package units
- Application field
- Modular features:
- Recommended Products
Plastic filter housing,also known as plastic cartridge filter housing or plastic precision filters,is composed of an UPVC, PP, PVDF housing and filter bag, melt blown filter cartridges or high flow filter cartridges inside.The housing featuresstablestructure,strongenvironmental adaptability and durability.
It is mainly installed after multi-media pretreatment filtration and before membrane filtration equipment such as reverse osmosis and ultrafiltration. It is used to filter out the residual trace suspended solids, colloids, microorganisms in the water, as well as fine materials (such as tiny quartz sand, activated carbon particles, etc.) after multi-media filtration, to ensure the water filtration accuracy and protect the membrane filtration element from damage by large particles. It has certain price advantages when compared with stainless steel filter housings and FRP filter housings.
Features
- Plastic fiter housings have good corrosion resistance and can be used in acid and alkalineenvironments.It can be applied to fields where stainless steel and carbon steel cannot enter.
- The filter housing features compact structure, beautiful appearance, simple installation and operation, and small footprint.
- The filter housings adopt allin-one molding and are produced in a standardized manner, which makes it easy to replace and maintain.
- The filter cover and the body are connected and sealed with wide threads or eyebolts, which not only ensures the intact sealing performance of the filter housing,but also brings convenience and speed to the disassembly and installtion of the replacement filter cartridges.
- The pressure gauge and exhaust valve are separately installed to make operation easier and will not cause the pressure gauge vibrating when exhausting.
By Structure
Category
By Filtration Mode
-
- Inside-out filter housing：Inside-out type refers to liquid flows from the filter cartridge inside to the outside and impurities are retained inside
- Outside-in filter housing: Outside-in type refers to liquid flows from outside to inside and impurities are retained outside of the filter cartridge.
By Material
- UPVC (rigid polyvinyl chloride) filter housing:It features strong corrosion resistance, low fluid resistance,high mechanical strength and good water tightness.
- PP (polypropylene) filter housing:It has good impact strength, good chemical stability and good anti-corrosion effect.
- PVDF (polyvinylidene fluoride) filter housing:In addition to good chemical resistance and high temperature resistance, it also has good oxidation resistance, weather resistance and corrosion resistance.

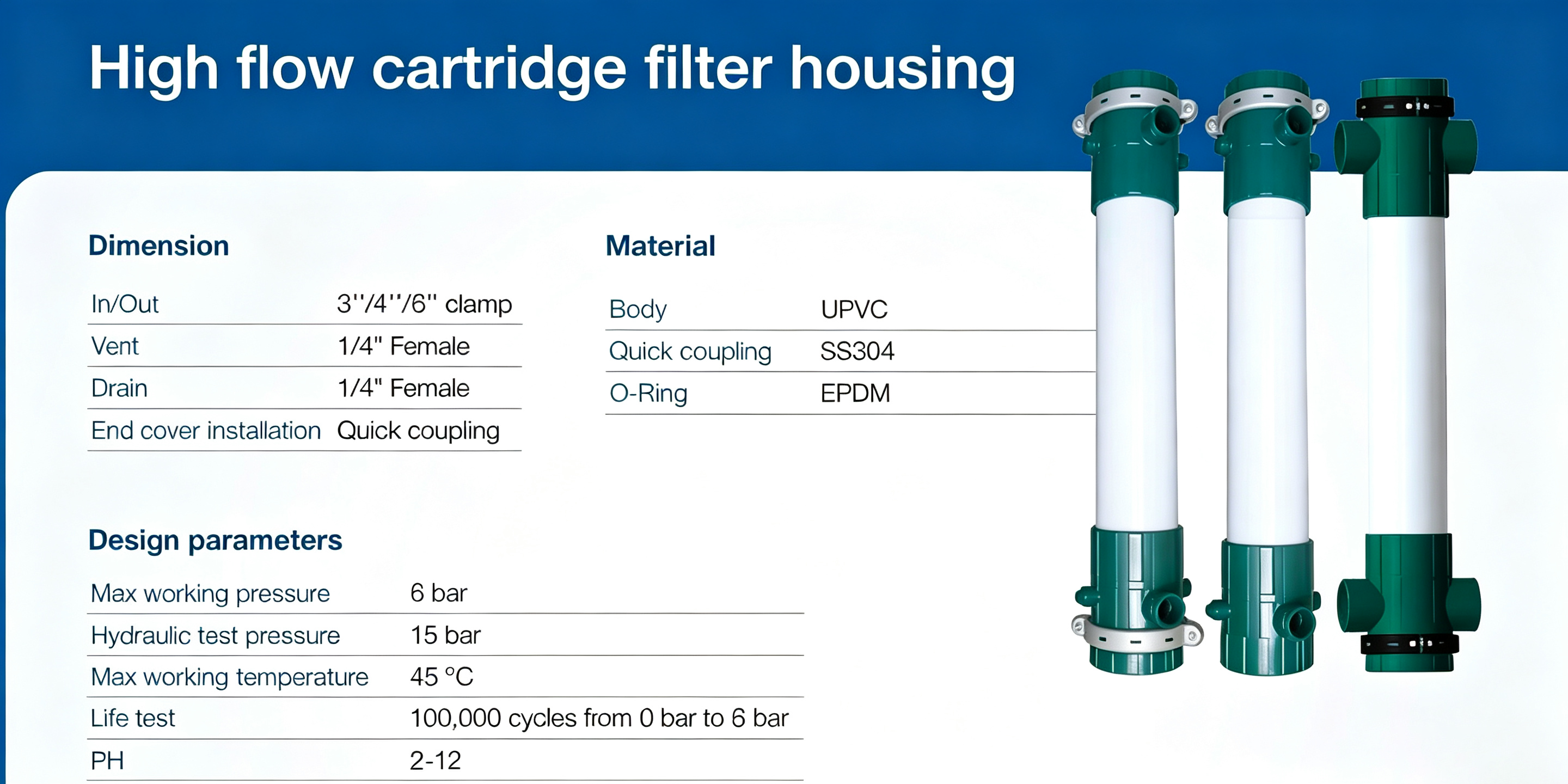

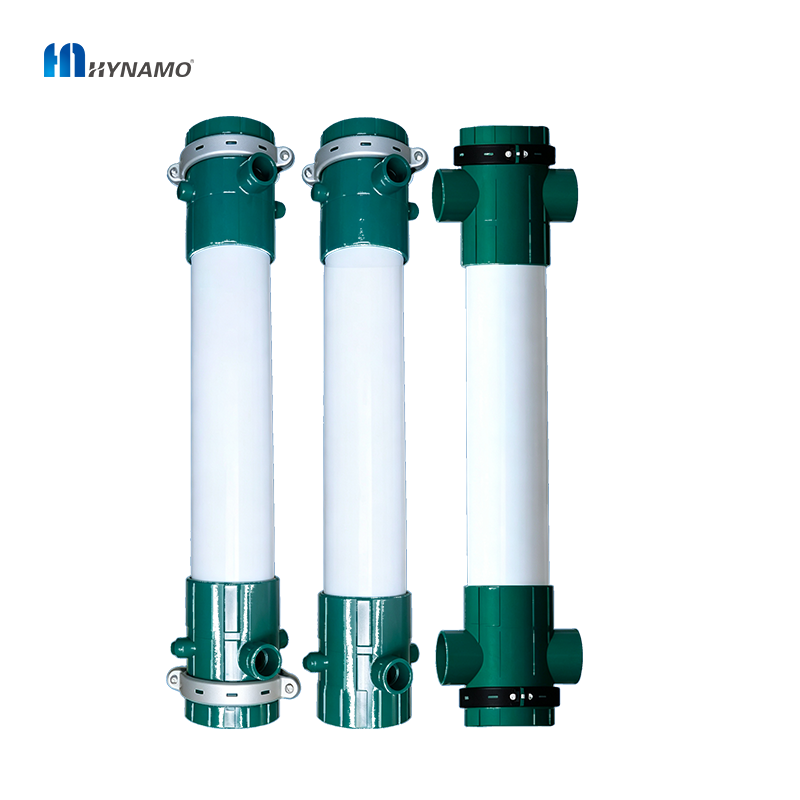

High flow cartridge filter housing

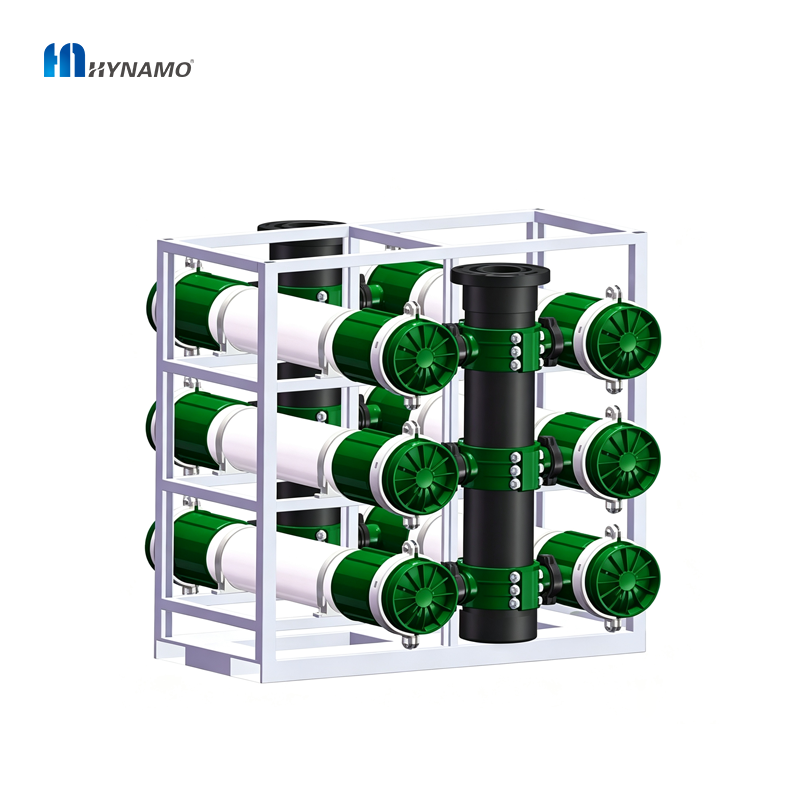

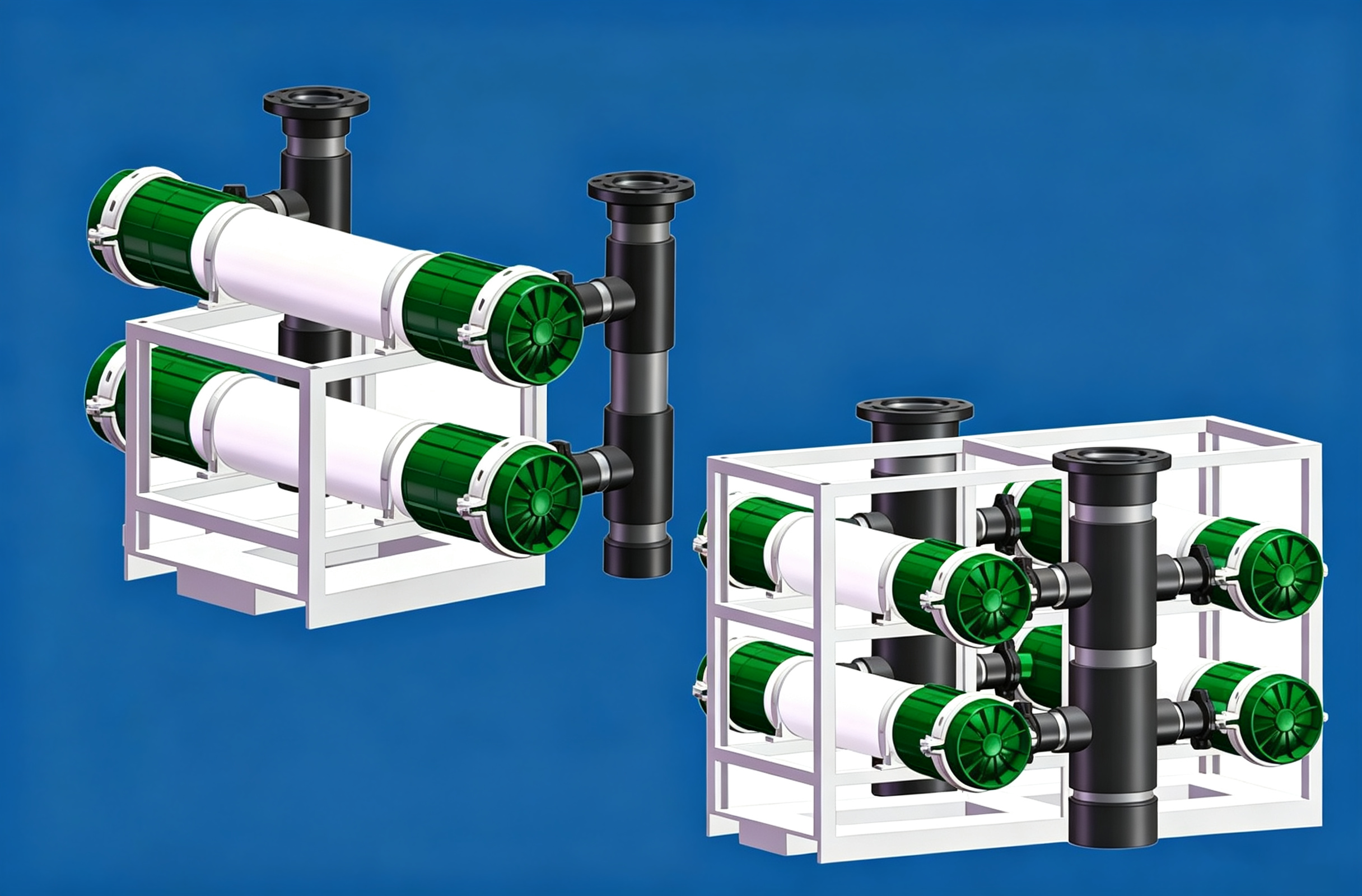

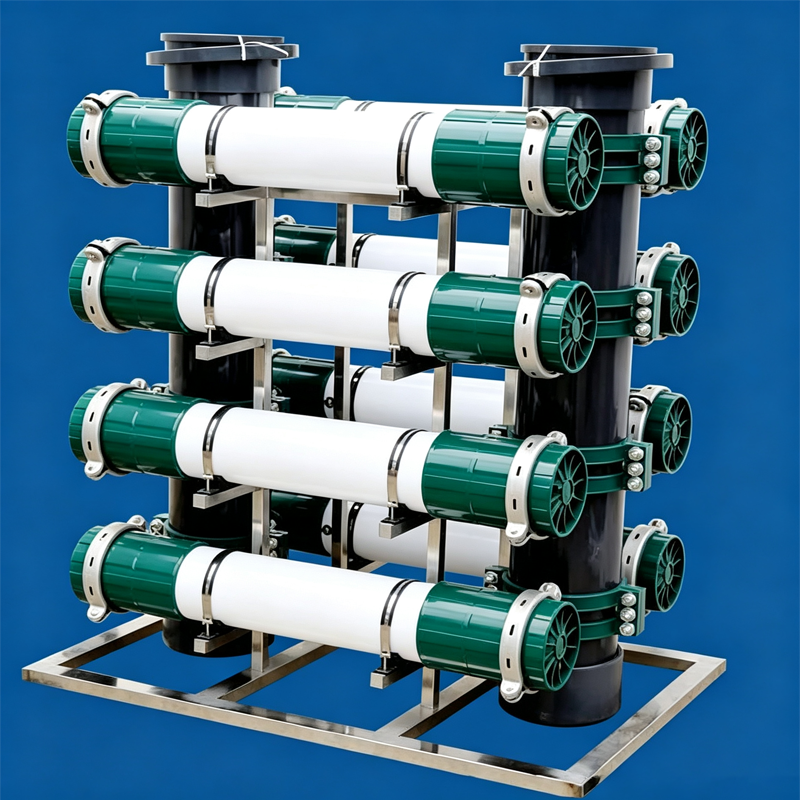

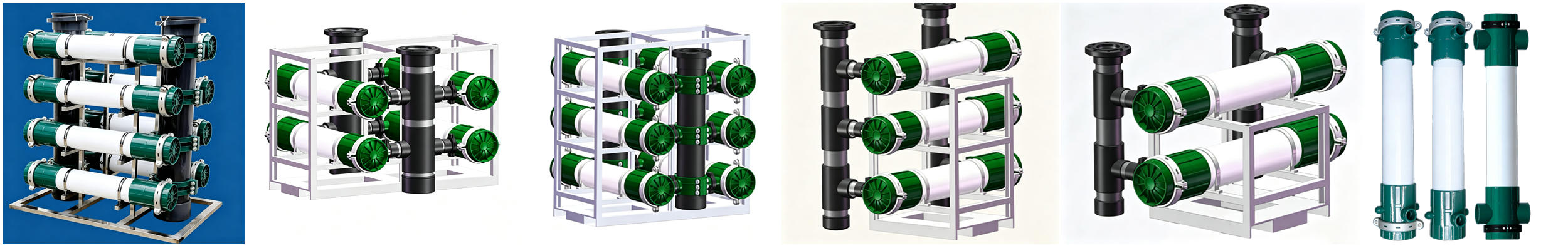

High flow Skid package units
- Higher design strength standard,through0.6MPA,100,000 fatigue strength verification.
- More convenient to install and maintenance, multiple choice of drain and discharge pressure interface.
- Price is more competitive, especially for large sea water desalination and waste water reuse projects.
- Superior anti-corrosion performance, flow passage components are all made by UPVC/CPVC.
- 20", 40", 60" large flux folding fiter element is suitable for this housing.
- The end cover adopts the form of quick coupling, easy to remove and replace the filter element.
- The inlet & outlet and the shell are integrated. Compared with the FRP filter, which inlet and outlet are made of plastic connector, and the mechanical seal is used for the connection of the shel, there will be a risk of leakage.
Application field
- Brackish water, sea water desalination
- Bottled water, pure water production
- Waste water,sewage reuse
- Circulating cooling water reuse
- Corrosive liquid filtration
- Pool,aquarium filtration
- Agricultural flower drip irrigation water filtration
Modular features:
- Standard modular design;different flow design can be combined arbitrarily
- High flow rate, small footprint
